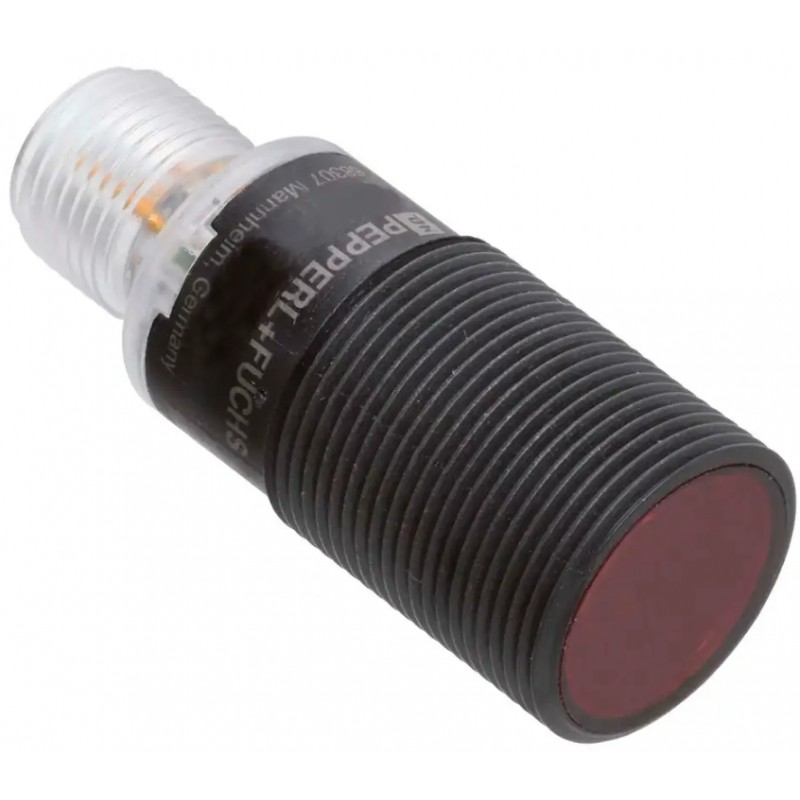

Retroreflective sensor with polarization filter OBR5500-18GK40-E2-V1
Item code: PF.70113328-100039
Condition: New product
Manufacturer: PEPPERL+FUCHS
M18 size, 1 x PNP output, Effective detection range 0 ... 5.5 m, front optical face, modulated visible red light, 1 x connector M12 3-pin, PC housing, IP67.
Pepperl+Fuchs OBR5500-18GK40-E2-V1.
Code: PF.70113328-100039.
3 pcs on stock
Data sheet
| Sensor shape | Cylindrical |
| Housing (mounting) size | M18x1 |
| Material | Polycarbonate, PC |
| Rated operating distance | 0 ... 5.5 m |

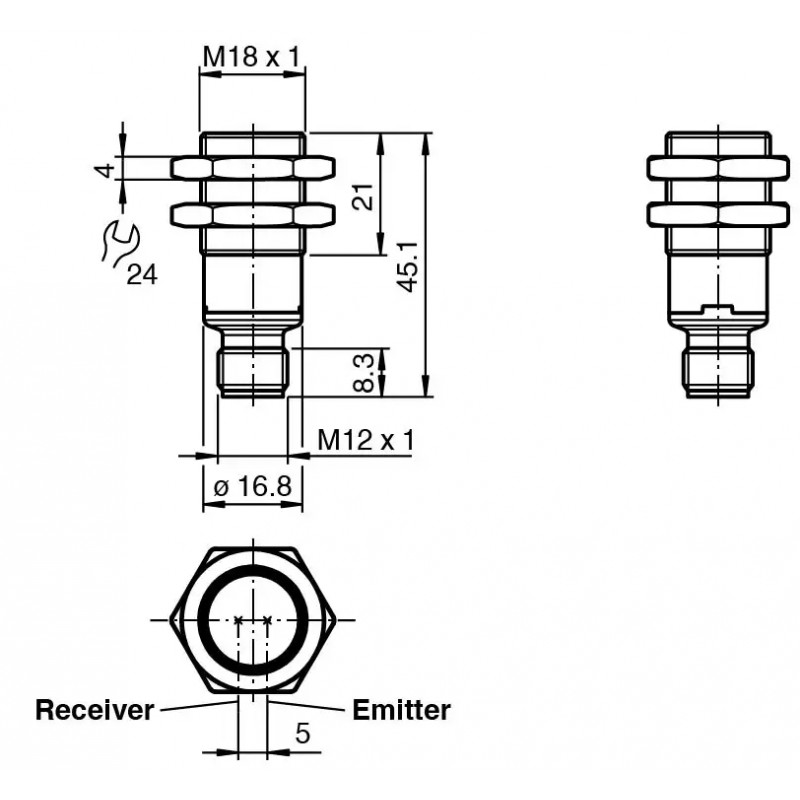

| Sensor length | 45.1 mm |
| Product type | Retroreflective |
| Connector | M12x1 |
| Number of contacts | 3 |
| Output type | PNP |
| Power supply voltage | 10-30 VDC |
| Operating temperature | -40°C ... +60°C |
| Degree of protection | IP67 |
| Sensor type | Photoelectric sensors |
More info
Application
Packaging industry:
- Presence checks, track loading, completeness checks, stack height control.
Material handling:
- Presence checks, target sensor, profile checks, trigger sensor.
Automatic doors, gates and access systems, elevator:
- Secure detection for automatic door and gate systems;
- Monitoring function in turnstiles;
- Closing edge monitoring in elevators.
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 5.5 m | |
| Reflector distance | 0 ... 5.5 m | |
| Threshold detection range | 7.8 m | |
| Reference target | reflector C110-2 | |
| Light source | LED | |
| Light type | modulated visible red light | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 350 mm at 5.5 m | |
| Opening angle | approx. 2.6 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 40000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 1552 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit | |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve | |
| Electrical specifications | ||
| Operating voltage | UB | 10 ... 30 V DC |
| Ripple | max. 10 % | |
| No-load supply current | I0 | < 25 mA |
| Protection class | III | |
| Output | ||

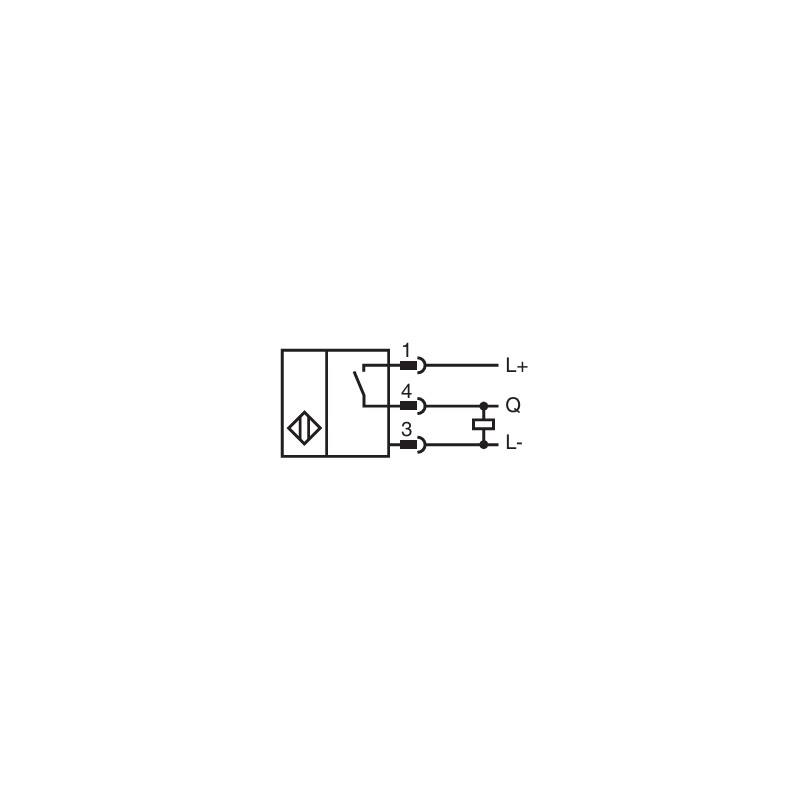

| Switching type | Q - Pin4: PNP normally open / dark-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | Ud | ≤ 1.5 V DC |
| Switching frequency | f | 500 Hz |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |

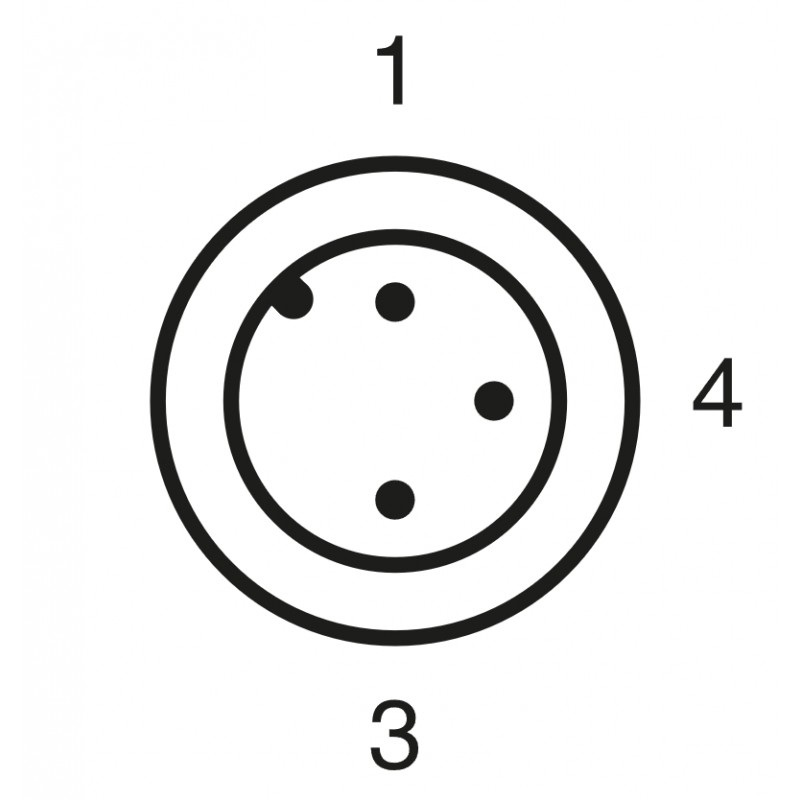

| Connection | 3-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Connector | Plastic | |
| Mass | approx. 8 g | |
