Angle Bracket M18

Item code: E10736

Condition: New product

Manufacturer: IFM

Angle Bracket for sensors M18

IFM E10736

3 pcs on stock pcs on stock Warning: Last items in stock!

3,60 € tax excl.

Quantity

More info

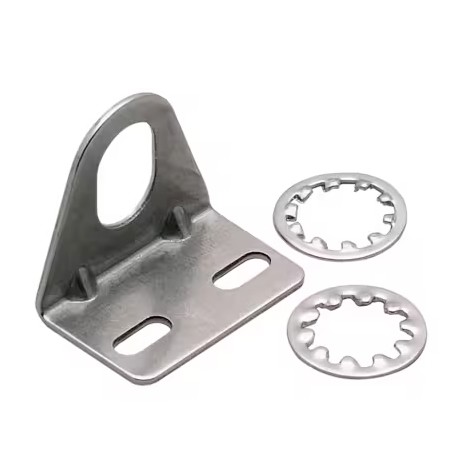

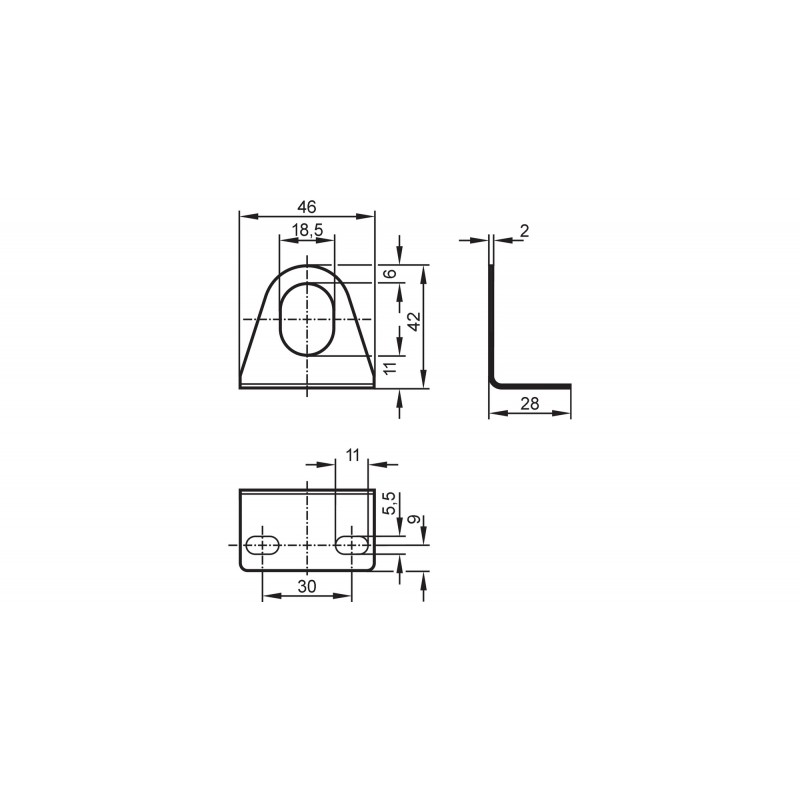

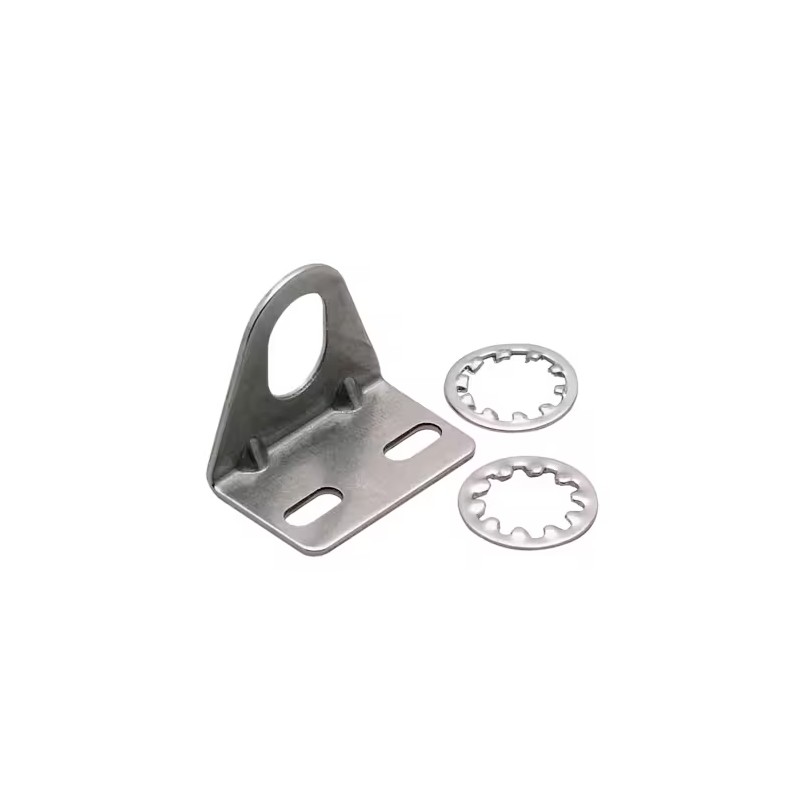

Stainless steel (304/1.4301) angled, with anti-vibration washers. Metal thickness 2mm, bending angle stabilized.

The sensor can be mounted at a distance of 20…44mm (distance between the sensor center and the mounting plane).

Designed for mounting with two M5 screws.

Distance between mounting holes 25…35mm.
