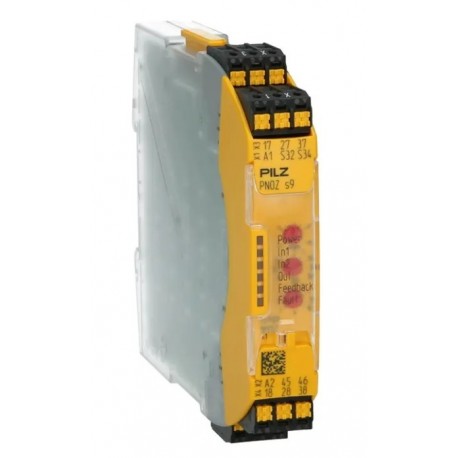

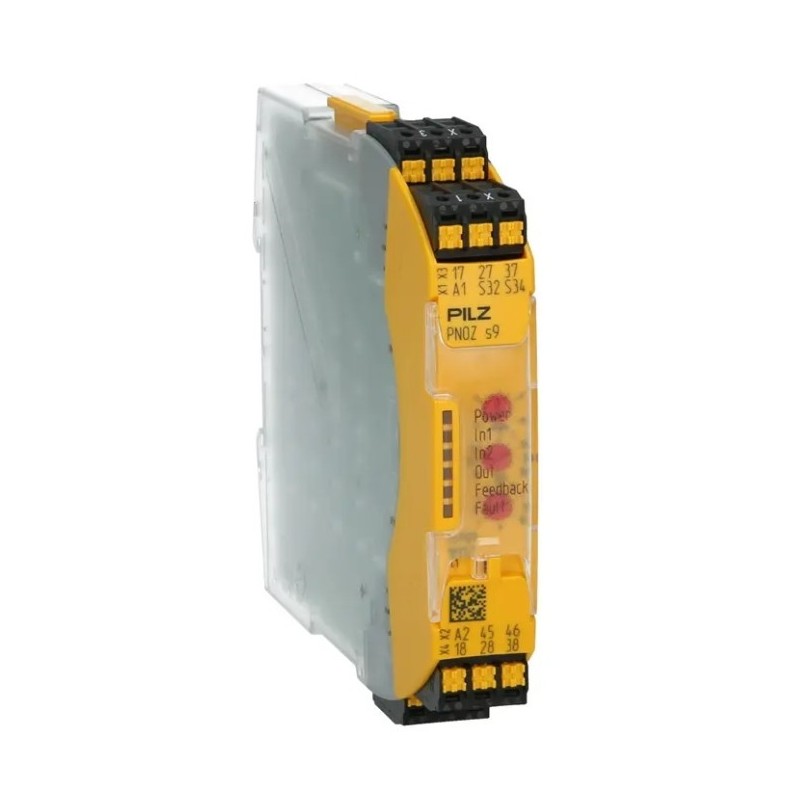

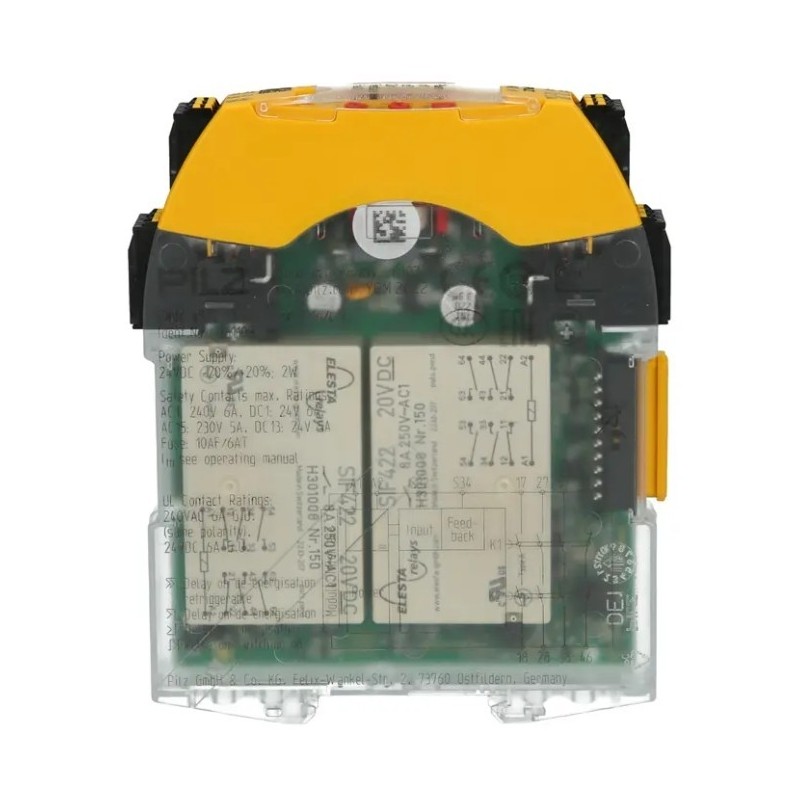

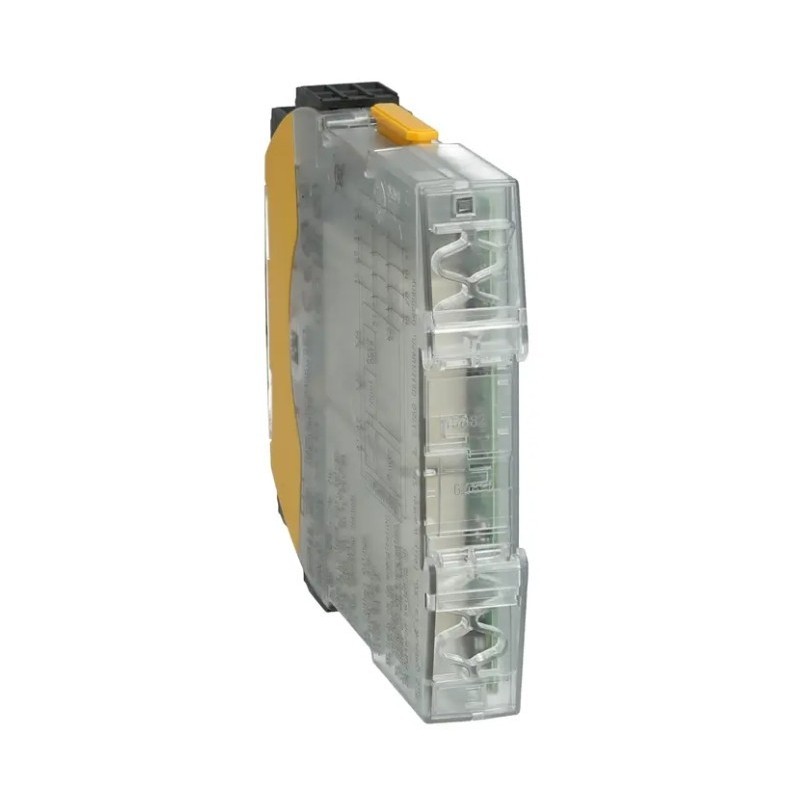

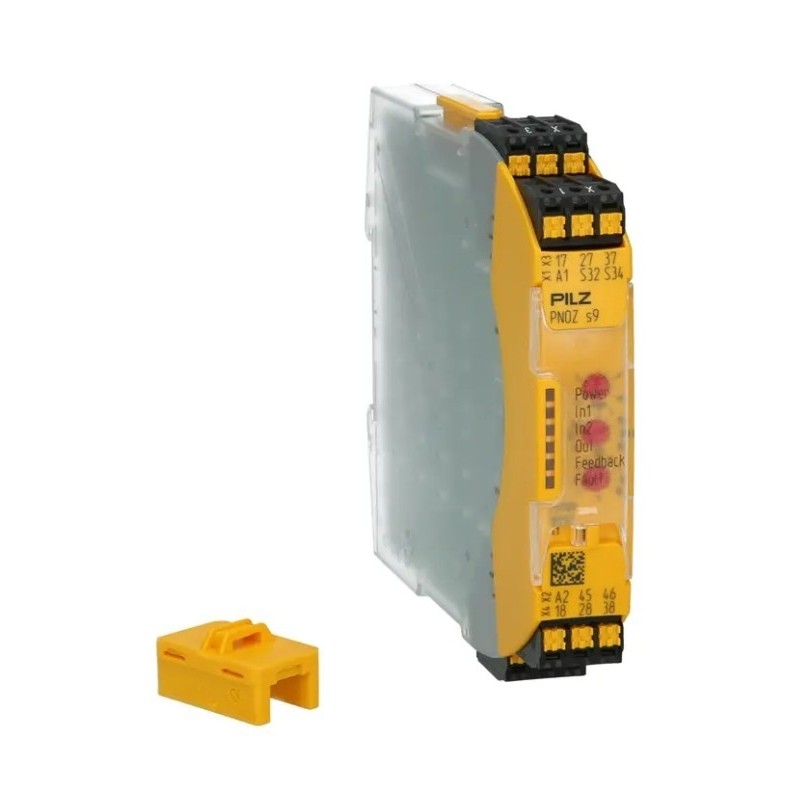

PNOZ s9 C 24 V DC – safety timer relay
Item code: PZ.751109
Condition: New product
Manufacturer: PILZ
PILZ PNOZ s9 C (751109) is a 24 V DC safety timer and contact expansion relay. It provides three NO contacts and one NC contact with timing functions over 0.04–300 s, with removable spring-loaded terminals.
5 pcs on stock
Data sheet
| Output type | 3 NO + 1 NC with timing function, 0.04-300 s |
| Power supply voltage | 24 V DC |
| Type of contact terminals | Spring-loaded |
| Product Group | PNOZsigma |
| Inputs type | 1-/2- channel wiring |
More info
This PNOZsigma relay provides safety timing or additional contacts in conjunction with compatible safety control equipment. It supports on-delay, off-delay and pulse functions. The selected mode determines contact behaviour, so the required timing sequence must be specified when selecting the device.
Key specifications
| Manufacturer code | 751109 |
|---|---|
| Supply | 24 V DC |
| Contacts | 3 safety NO, 1 auxiliary NC; timed operation |
| Timing range | 0.04–300 s |
| Terminals | removable spring-loaded terminals |
| Housing width | 17.5 mm |
This order code uses removable spring-loaded terminals. The screw-terminal version is 750109.
Selecting the timing function
The NC contact is auxiliary. Match the time setting, tolerance, control wiring and feedback to the main safety function. The relay does not replace measurement of the actual machine stopping time.
PILZ technical data and documentation. Refer to the operating manual for the exact device for wiring diagrams, load limits and operating conditions.
For selection or delivery information, contact BOPLALIT with code 751109, quantity and application. For a replacement, include a photo of the existing device label and its circuit diagram.
Additional technical data
| Max. current at DC13 I (6 cycles/min) | 5.0 A |
|---|---|
| Max. current at AC15 | 5.0 A |
| Height dimension | 100.0 mm |
| Depth dimension | 120.0 mm |
| Gross weight | 185 g |
| Net weight | 175 g |
| Ambient temperature | -15 - 55 °C |
