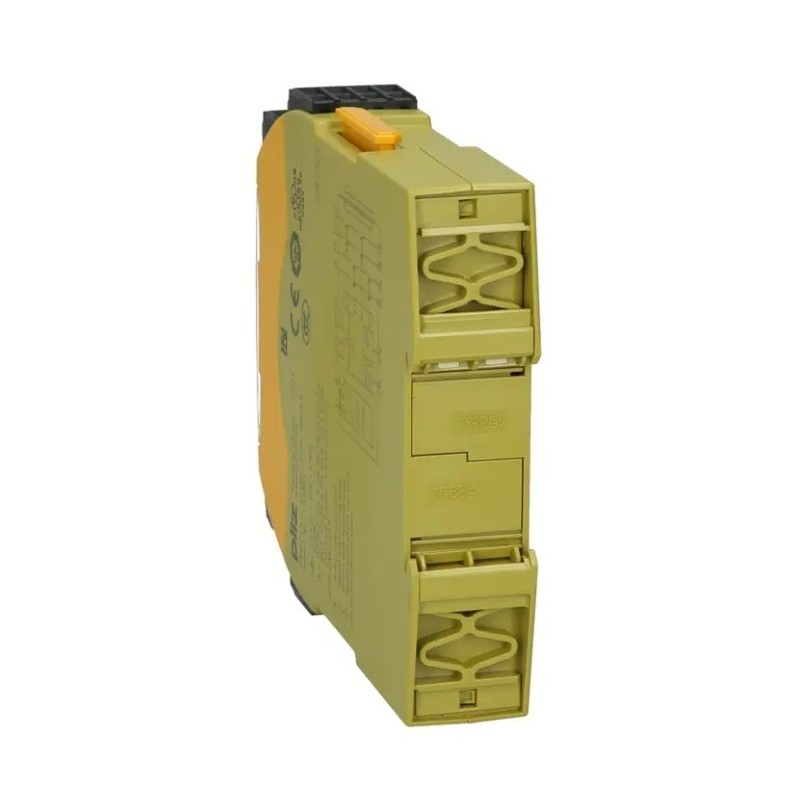

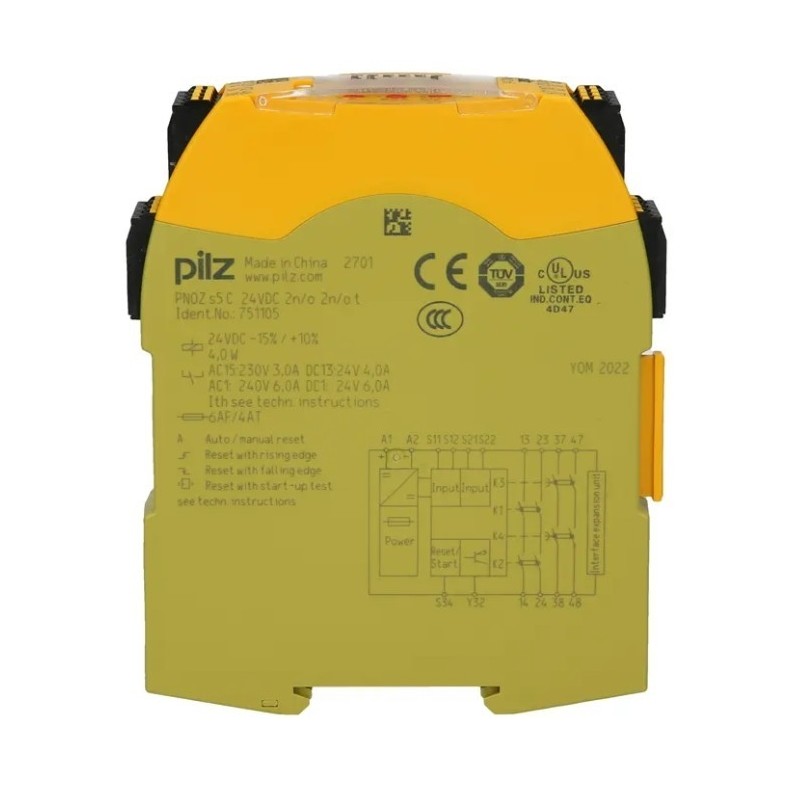

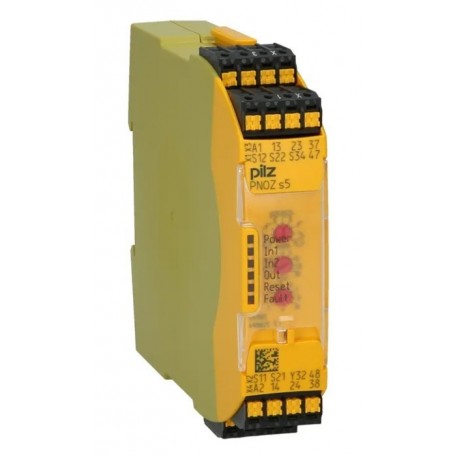

PNOZ s5 C 24 V DC – safety relay
Item code: PZ.751105
Condition: New product
Manufacturer: PILZ
PILZ PNOZ s5 C (751105) is a safety relay for monitoring emergency-stop buttons, safety gates and compatible light guards. Supply: 24 V DC; removable spring-loaded terminals. 2 instantaneous safety NO + 2 off-delayed safety NO + 1 semiconductor signal output.
This product is no longer in stock
Data sheet
| Output type | 2 instantaneous NO + 2 off-delayed NO, 0.04-300 s |
| Power supply voltage | 24 V DC |
| Type of contact terminals | Spring-loaded |
| Product Group | PNOZsigma |
| Inputs type | 1-/2- channel wiring |
More info
PILZ PNOZ s5 C, order code 751105, monitors the connected safety circuit for monitoring emergency-stop buttons, safety gates and compatible light guards. Its safety contacts provide the switching signal to the machine control system.
Key specifications
| Manufacturer code | 751105 |
|---|---|
| Supply | 24 V DC |
| Input wiring | 1 or 2 channels, depending on wiring |
| Outputs | 2 instantaneous safety NO + 2 off-delayed safety NO + 1 semiconductor signal output |
| Terminals | removable spring-loaded terminals |
| Housing width | 22.5 mm |
| Off-delay setting | 0.04–300 s |
NO means normally open and NC means normally closed. Auxiliary NC contacts and semiconductor signal outputs indicate status; they do not replace the safety contacts.
What to check before ordering
The instantaneous and off-delayed contacts serve different functions. Select the delay to suit the actual machine stopping time and the safety design.
PILZ technical data and documentation. Refer to the operating manual for the exact device for wiring diagrams, load limits and operating conditions.
For selection or delivery information, contact BOPLALIT with code 751105, quantity and application. For a replacement, include a photo of the existing device label and its circuit diagram.
Additional technical data
| Max. current at DC13 I (6 cycles/min) | 4.0 A |
|---|---|
| Max. current at AC15 | 3.0 A |
| Height dimension | 100.0 mm |
| Depth dimension | 120.0 mm |
| Gross weight | 245 g |
| Net weight | 235 g |
| Ambient temperature | -10 - 55 °C |
