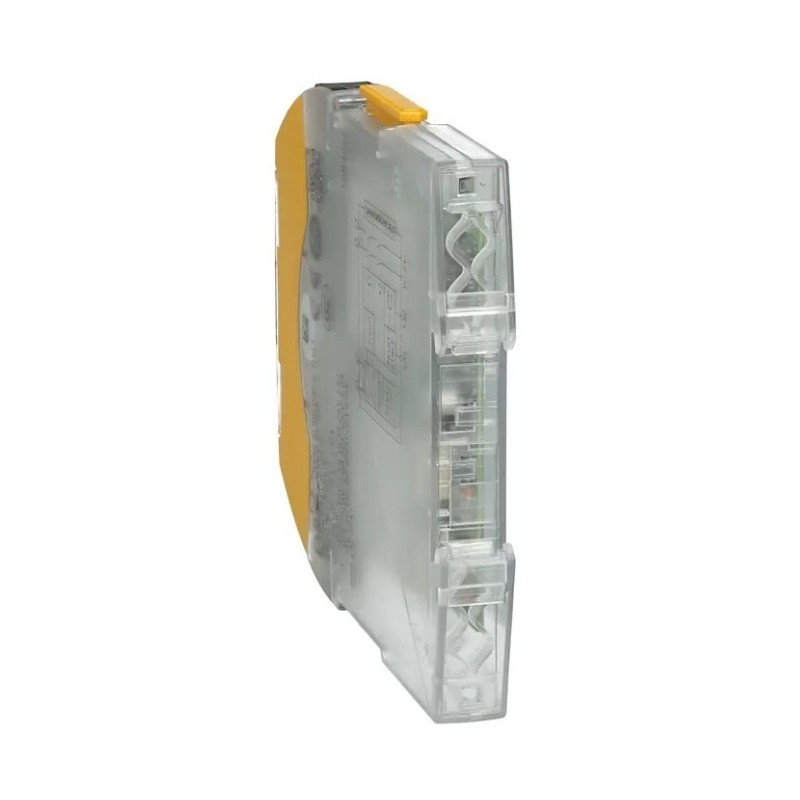

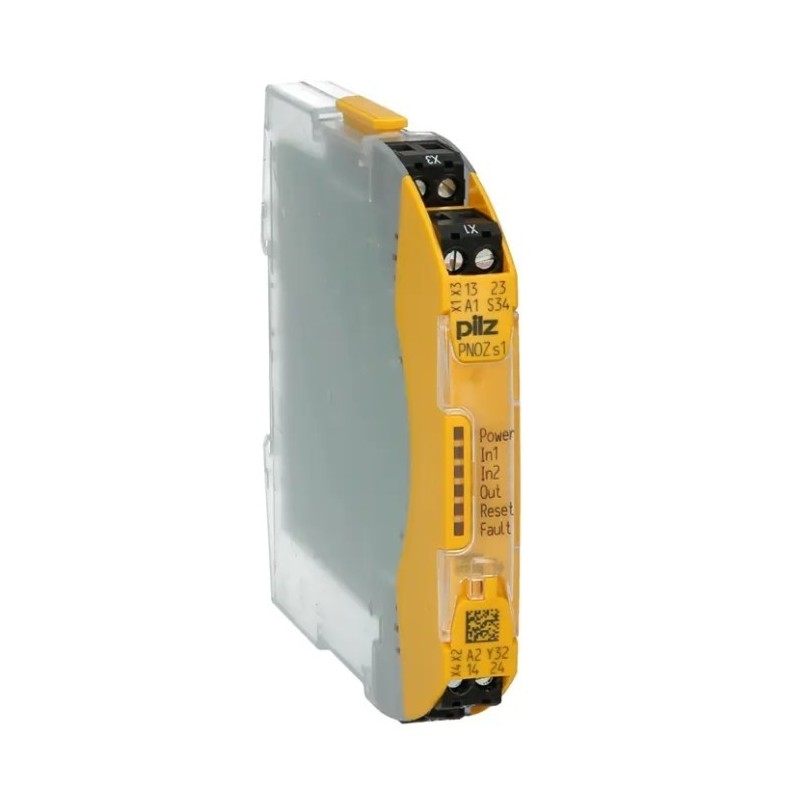

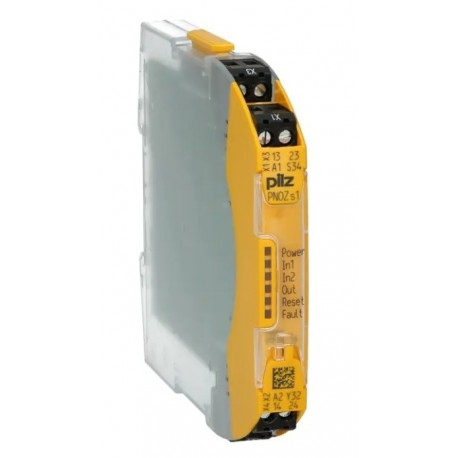

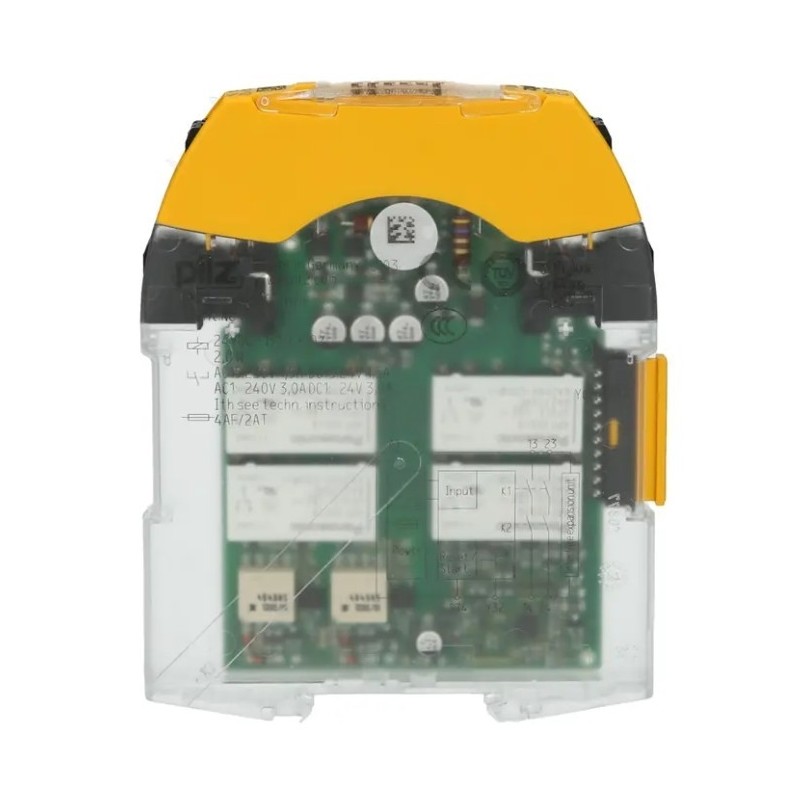

PNOZ s1 24 V DC – safety relay
Item code: PZ.750101
Condition: New product
Manufacturer: PILZ
PILZ PNOZ s1 (750101) is a safety relay for monitoring emergency-stop buttons and safety gates. Supply: 24 V DC; removable screw terminals. 2 instantaneous safety NO + 1 semiconductor signal output.
6 pcs on stock
Data sheet
| Output type | 2 N/O |
| Power supply voltage | 24 V DC |
| Type of contact terminals | Screw |
| Product Group | PNOZsigma |
| Inputs type | 1-channel wiring |
More info
PILZ PNOZ s1, order code 750101, monitors the connected safety circuit for monitoring emergency-stop buttons and safety gates. Its safety contacts provide the switching signal to the machine control system.
Key specifications
| Manufacturer code | 750101 |
|---|---|
| Supply | 24 V DC |
| Input wiring | 1 channel |
| Outputs | 2 instantaneous safety NO + 1 semiconductor signal output |
| Terminals | removable screw terminals |
| Housing width | 12.5 mm |
NO means normally open and NC means normally closed. Auxiliary NC contacts and semiconductor signal outputs indicate status; they do not replace the safety contacts.
What to check before ordering
This model has a single-channel input circuit. A design requiring dual-channel monitoring needs a model that supports that arrangement.
PILZ technical data and documentation. Refer to the operating manual for the exact device for wiring diagrams, load limits and operating conditions.
For selection or delivery information, contact BOPLALIT with code 750101, quantity and application. For a replacement, include a photo of the existing device label and its circuit diagram.
Additional technical data
| Max. current at DC13 I (6 cycles/min) | 1.5 A |
|---|---|
| Max. current at AC15 | 1.5 A |
| Height dimension | 98.0 mm |
| Depth dimension | 120.0 mm |
| Gross weight | 115 g |
| Net weight | 105 g |
| Ambient temperature | -10 - 55 °C |
