PNOZ XV1P C 24 V DC – safety relay
Item code: PZ.787602
Condition: New product
Manufacturer: PILZ

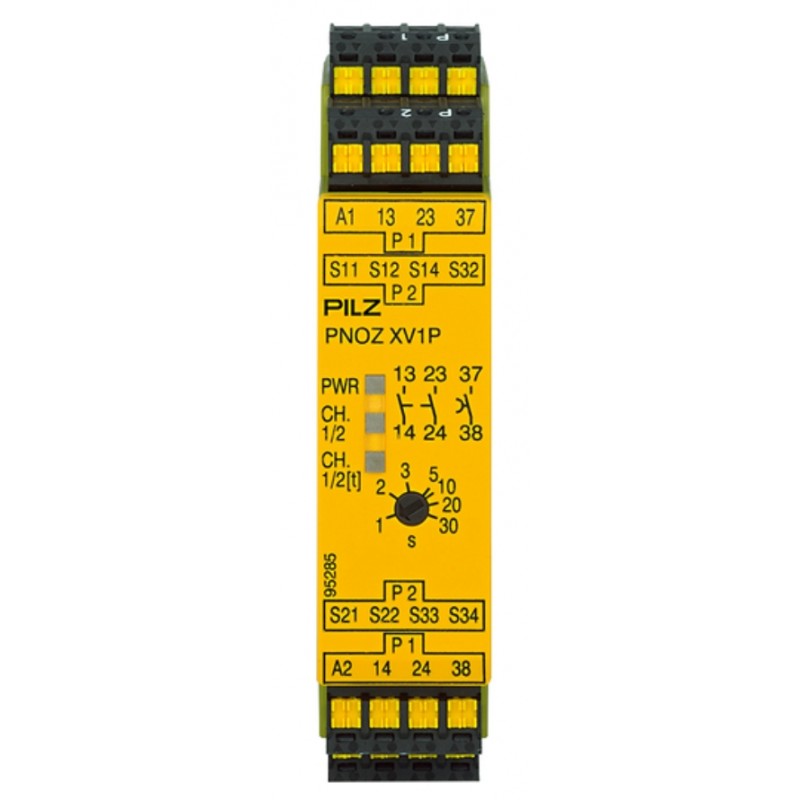

PILZ PNOZ XV1P C (787602) is a safety relay for monitoring emergency-stop buttons, safety gates and compatible light guards. Supply: 24 V DC; removable spring-loaded terminals. 2 instantaneous safety NO + 1 off-delayed safety NO.
3 pcs on stock
Data sheet
| Output type | 2 N/O, 1 N/Ot-d |
| Power supply voltage | 24 V DC |
| Product Group | PNOZ X |
More info
PILZ PNOZ XV1P C, order code 787602, monitors the connected safety circuit for monitoring emergency-stop buttons, safety gates and compatible light guards. Its safety contacts provide the switching signal to the machine control system.
Key specifications
| Manufacturer code | 787602 |
|---|---|
| Supply | 24 V DC |
| Input wiring | 1 or 2 channels, depending on wiring |
| Outputs | 2 instantaneous safety NO + 1 off-delayed safety NO |
| Terminals | removable spring-loaded terminals |
| Housing width | 22.5 mm |
| Off-delay setting | 1–30 s |
NO means normally open and NC means normally closed. The safety function depends on the complete circuit design.
What to check before ordering
The instantaneous and off-delayed contacts serve different functions. Select the delay to suit the actual machine stopping time and the safety design.
PILZ technical data and documentation. Refer to the operating manual for the exact device for wiring diagrams, load limits and operating conditions.
For selection or delivery information, contact BOPLALIT with code 787602, quantity and application. For a replacement, include a photo of the existing device label and its circuit diagram.
