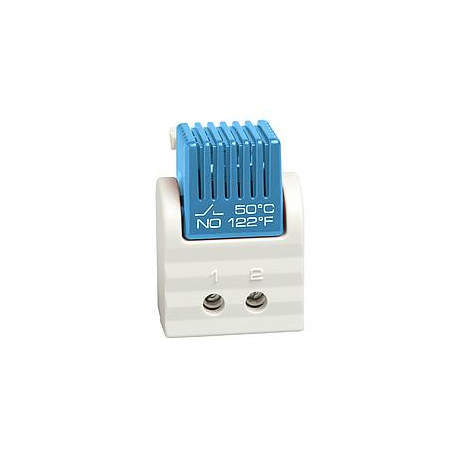

FTS 011(NO), Termostatas, Apsaugotas nuo klastojimo (Iš anksto nustatytas) - 01161.0-00
Prekės kodas: ST.01161.0-00
Būklė: Nauja prekė
Gamintojas: STEGO

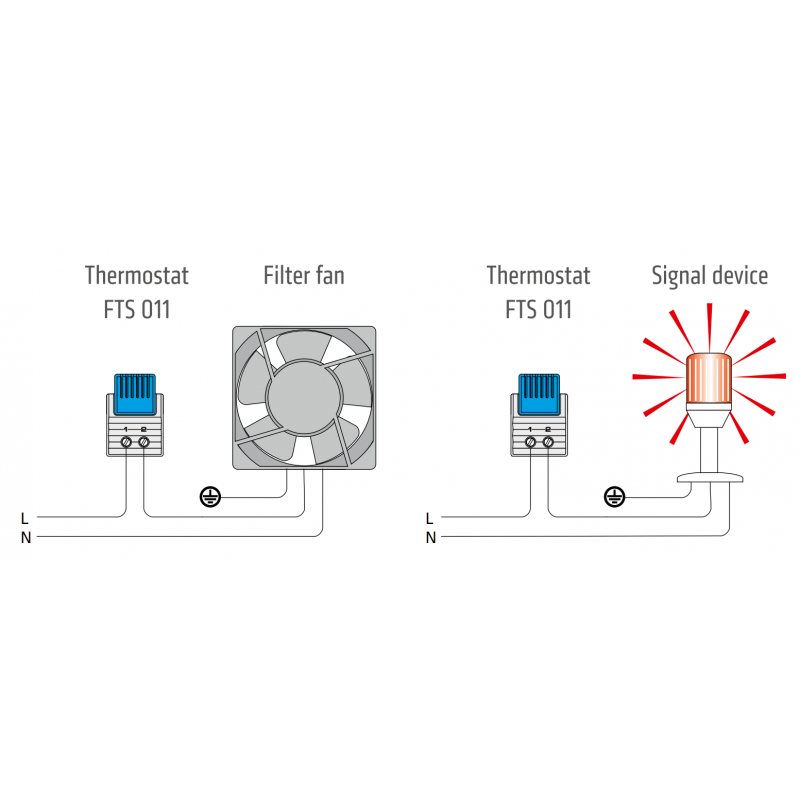

FTS 011 Tamper-proof (Pre-set) Thermostat: Contact maker / NO (blue casing) Termostatas ventiliatoriui (NO); temperatūrai viršijus nustatytą reikšmę, įjungiamas ventiliatorius / aušinimo įrenginys arba naudojama signalizacijai.
Switch-on temperature: +50°C / +122°F (±7K tolerance);
Switch-off temperature: +40°C / +104°F (±6K tolerance).
Šiuo metu prekės neturime
Charakteristikos
| Produkto tipas | Termostatas |
| Veikimo funkcija | NO (Aušinimas) |
| Maitinimo įtampa | 230V AC |
| Temperatūros nustatymo diapazonas | Tamper-proof (Pre-set) |
| Switch-off temperature | +40°C / +104°F (±6K tolerance) |
| Switch-on temperature | +50°C / +122°F (±7K tolerance) |
| Maksimali pradinė srovė | AC 16 A for 10 sec |
| Darbinė temperatūra | -45°C ... +80°C |
| Apsaugos klasė | IP20 |
| Patvirtinimai | VDE, UL, EAC |
Apie prekę
| Sensor element | thermostatic bimetal |
|---|---|
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. switching capacity | 250VAC, 5 (1.6) A / 120VAC, 10 (2) A DC 30W |
| Max. inrush current | AC 16A for 10 sec. |
| Connection | 2-pole terminal, clamping torque 0.8Nm max.: rigid/stranded1 wire 2.5mm² (AWG 14) |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Casing | blue top, plastic according to UL94 V-0, light grey |
| Dimensions | 47 x 33 x 33mm |
| Weight | approx. 30g |
| Fitting position | variable |
| Operating/Storage temperature | -40 to +80°C (-40 to +176°F) / -45 to +80°C (-49 to +176°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type | IP20 |
| Approvals | VDE, UL File No. E164102, EAC |
¹ When connecting with stranded wires, wire end ferrules must be used.
| Art. No. | Contact | Switch-on temperature | Switch-off temperature |
|---|---|---|---|
| 01161.0-00 | Contact maker (NO) | +50°C / +122°F (±7K tolerance) | +40°C / +104°F (±6K tolerance) |
