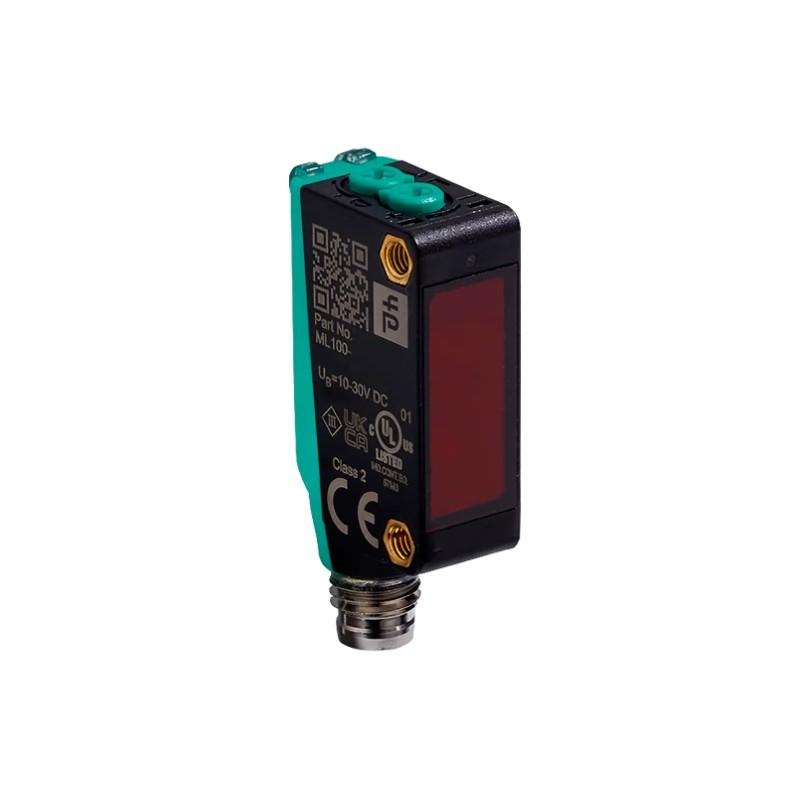

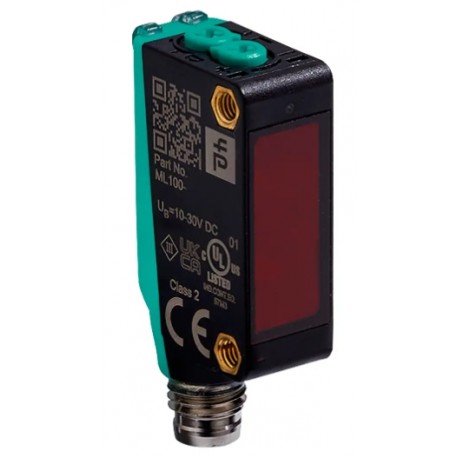

Fono slopinimo jutiklis ML100-8-H-350-RT/95/103
Prekės kodas: PF.216895
Būklė: Nauja prekė
Gamintojas: PEPPERL+FUCHS
Trianguliacijos jutiklis su fono slopinimu, Sn=3…350mm, raudona šviesa, PNP NO/NC, jungtis M8 4-pin
Pepperl+Fuchs ML100-8-H-350-RT/95/103.
Kodas: PF.216895.
5 vnt. sandėlyje
Charakteristikos
| Jutiklio forma | Stačiakampis |
| Korpuso (montavimo) dydis | 11 x 31 x 20 mm |
| Medžiaga | Polikarbonatas, PC |
| Veikimo atstumas | 5 ... 350 mm reguliuojamas |
| Produkto tipas | Fono slopinimo |
| Jungtis | M8x1 |
| Kontaktų skaičius | 4 |
| Išėjimo tipas | PNP |
| Maitinimo įtampa | 10-30 VDC |
| Darbinė temperatūra | -30°C ... +60°C |
| Apsaugos klasė | IP67 |
| Jutiklio tipas | Optiniai jutikliai |
Apie prekę
| Product Description | ||
|---|---|---|
| Triangulation sensor with background suppression / BGS | ||
| General specifications | ||
|---|---|---|
| Detection range | 5 ... 350 mm | |
| Detection range min. | 5 ... 30 mm | |
| Detection range max. | 5 ... 350 mm | |
| Adjustment range | 30 ... 350 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light | |
| Polarization filter | no | |
| Black-white difference (6 %/90 %) | < 18 % at 350 mm | |
| Diameter of the light spot | approx. 20 mm at a distance of 350 mm | |
| Opening angle | approx. 4 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2:2007+A1:2012 | |
| Functional safety related parameters | ||
| MTTFd | 860 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: power on | |
| Function indicator | LED yellow: lights when object is detected | |
| Control elements | Sensing range adjuster | |
| Control elements | Light-on/dark-on changeover switch | |
| Electrical specifications | ||
| Operating voltage | UB | 10 ... 30 V DC |
| Ripple | max. 10 % | |
| No-load supply current | I0 | < 20 mA |
| Interface | ||
| Interface type | IO-Link ( via C/Q = pin 4 ) | |
| IO-Link revision | 1.1 | |
| Device profile | Smart Sensor | |
| Device ID | 0x110602 (1115650) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 2.3 ms | |
| Process data width | Process data input 1 Bit Process data output 2 Bit |
|
| SIO mode support | yes | |
| Compatible master port type | A | |
| Output | ||
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | Ud | ≤ 1.5 V DC |
| Switching frequency | f | 500 Hz |
| Response time | 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |

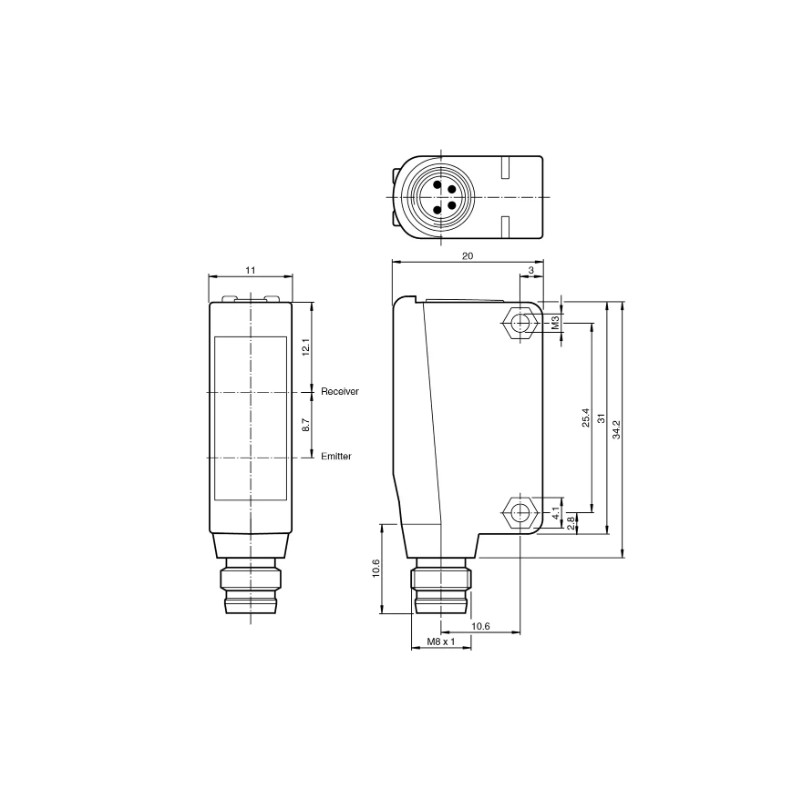

| Mechanical specifications | ||
| Housing width | 11 mm | |
| Housing height | 31 mm | |
| Housing depth | 20 mm | |
| Degree of protection | IP67 | |

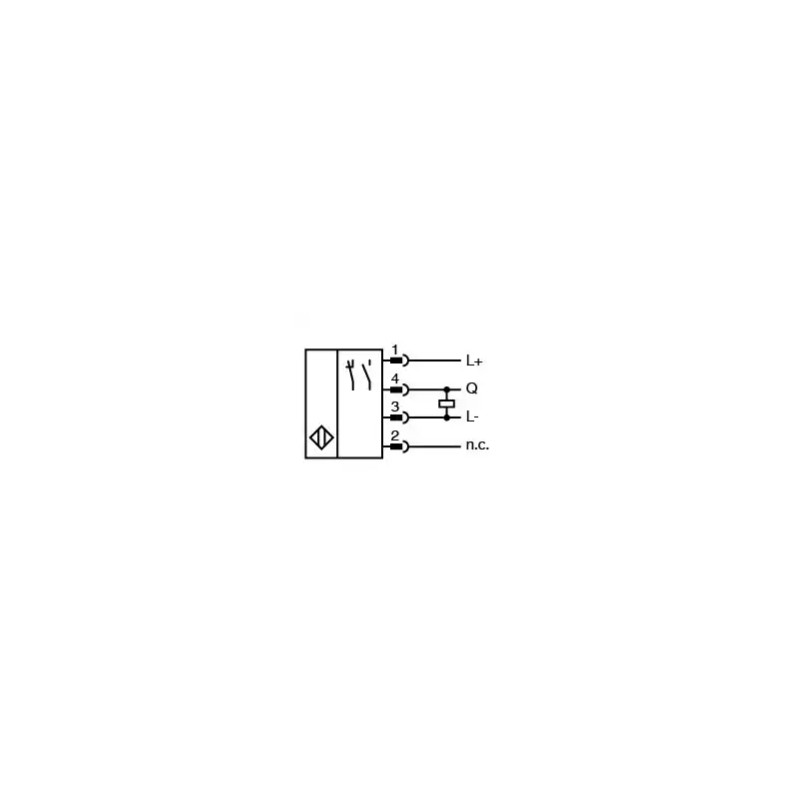

| Connection | Connector M8 x 1 , 4-pin | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | approx. 10 g | |
| Tightening torque, fastening screws | 0.6 Nm | |
Jautrumo paderinimui naudoti atsuktuvą su PH1 antgaliu. Rekomenduojamas- WERA Kraftform Micro 2050 serijos WR.118023
