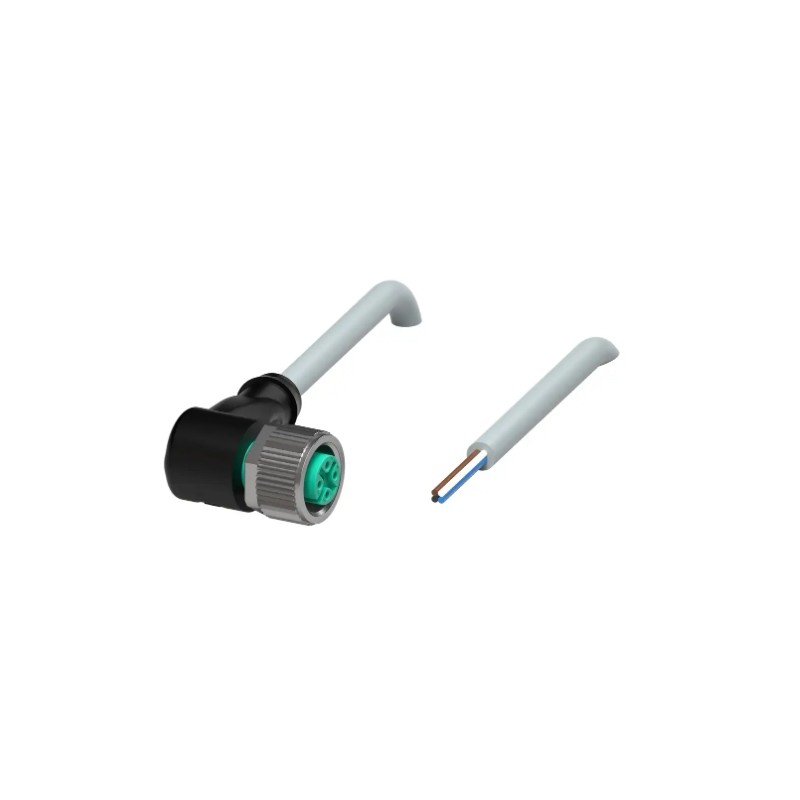

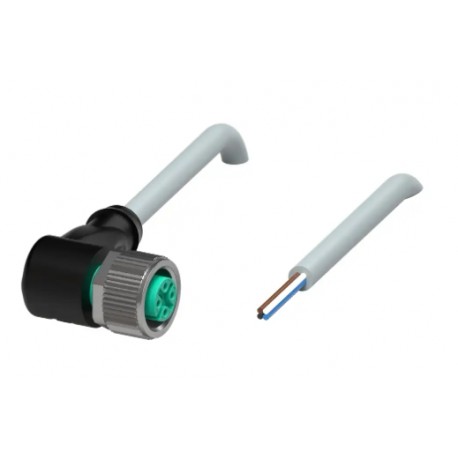

Jutiklio 5m kabelis, PUR, M12 4P kamp. jungtis V1-W-5M-PUR
Prekės kodas: PF.033808
Būklė: Nauja prekė
Gamintojas: PEPPERL+FUCHS
Vienpusis M12 kampinis A kodavimo 4 kontaktų PUR kabelis, mot., pilkas.
Pepperl+Fuchs PF.033808.
10 vnt. sandėlyje
Charakteristikos
| Medžiaga | PUR |
| Produkto tipas | Jutiklio kabelis |
| Kabelio ilgis | 5 m |
| Jungtis | M12x1 |
| Kontaktų skaičius | 4 |
| Apsaugos klasė | IP66 / IP68 / IP69 |
| Korpuso forma | mot., kampu |
| Jungties koduotė | M12-A |
Apie prekę
| General specifications | |
| Connector 1 | |
| Connection | socket |
| Construction type | M12 |
| Style | angled |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 2 | |
| Connection | cable end |
| Electrical specifications | |
| Operating voltage UB | max. 250 V AC/DC |
| Operating current IB | max. 4 A |
| Conformity | |
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Halogen-free | IEC 60754-1 |
| Ambient conditions | |
| Ambient temperature | |
| Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
| Mechanical specifications | |
| Plug connector | |
| Tightening torque | 0.6 Nm |
| Loosening protection | integrated |

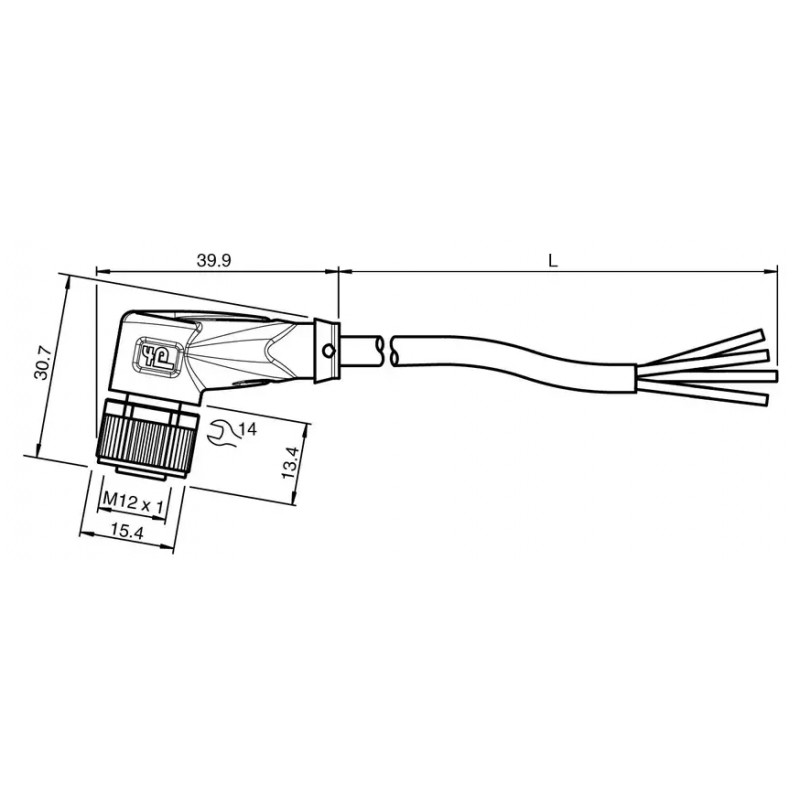

| Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation |
| Sheath stripping force | max. 60 N / 500 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |

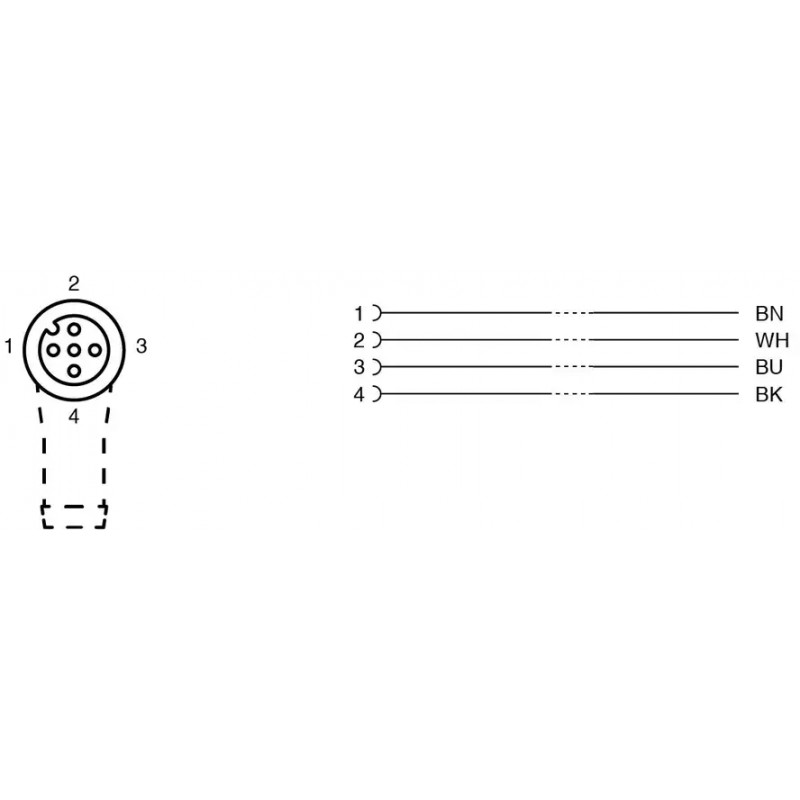

| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 19 x 0.15 mm ∅ |
| Length L | 5 m |
| Cable code | Li 9Y 11YM 4 x 0.34 |
| Drag chain suitability | |
| Drag chain cycles | max. 50 / day |
| Motion velocity | max. 0.3 m/s |
| Mass | 159.4 g |
| Material | |
| Halogen-free | yes |
| Plug connector | |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU, black |
| Seal | FKM |
| Contact surface | gold plated (Au) |
| Flammability | V-2 |
| Cable | |
| Sheathing | PUR based on polyether |
| Cores | bare copper (Cu) |
| Core insulation | PP |
| Chemical resistance | good |
| Microbial resistance | yes |
| Hydrolysis resistance | yes |
| General information | |
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
